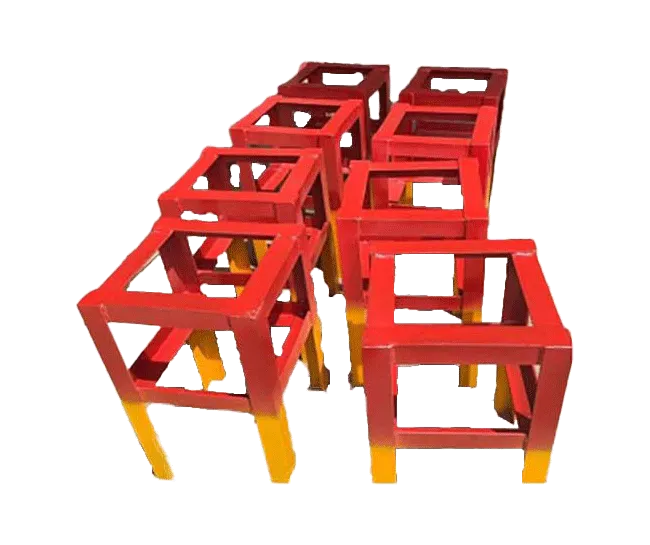

Pile Foundation Protection Pile Tooling: Protective Support Device in Pile Foundation Construction
In the pile foundation construction of bridges, high-rise buildings, large factories and other projects, the formed pile foundations (especially the pile heads exposed to the ground) are easily damaged by subsequent construction operations, material stacking or mechanical collisions, which affects the bearing performance and structural safety of the pile foundations. Pile foundation protection pile tooling, as a temporary protective device specially designed to protect pile foundations, provides a physical barrier for pile foundations through surrounding, supporting or isolating methods, avoiding external damage during construction, and is a key auxiliary facility to ensure the integrity of pile foundations.
I. Material Selection: Balancing Protection Strength and Environmental Adaptability
The material of pile foundation protection pile tooling should be selected according to the type of pile foundation (such as concrete piles, steel piles), construction environment (such as open air, humid, corrosive sites) and protection cycle. Common types include:
- Q235 carbon structural steel: With moderate strength and low cost, it can be assembled into a protective structure through welding or bolt connection. It is suitable for the protection of most concrete pile foundations in dry environments, such as temporary pile protection in building foundations;
- Q355 low-alloy high-strength steel: It has higher yield strength and impact resistance, and can withstand accidental collisions of heavy machinery. It is suitable for scenarios with high requirements on protection strength, such as large bridge pile foundations and heavy equipment foundation pile foundations;
- Stainless steel: Mainly 304 or 316 stainless steel, with excellent corrosion resistance. It is suitable for use in humid environments (such as pile foundations by rivers and seas) or industrial sites with chemical erosion, which can avoid the impact of tooling's own rust on the protection effect;
- High-strength plastic or composite materials: Light in weight, good in impact resistance, and will not cause electrochemical corrosion with concrete pile bodies. They are suitable for small pile foundations or short-term protection needs, such as temporary pile protection in municipal engineering.
Some tooling will be subject to anti-corrosion treatment on the metal surface (such as painting, galvanizing), or add anti-ultraviolet additives on the plastic surface to extend the service life in outdoor environments.
II. Structural Design: Focusing on the Core Needs of "Protection" and "Adaptation"
The structure of pile foundation protection pile tooling needs to be flexibly designed according to the pile foundation diameter, exposed height and construction scenario. The basic composition includes:
- Main protective structure: Mostly circular, semicircular or square frames, forming a physical protective layer by surrounding the pile body. The circular structure is suitable for circular pile foundations and can provide 360° all-round protection; the semicircular structure is convenient to be sleeved after the pile foundation is completed, suitable for later installation; the square structure is designed for square or rectangular pile foundations, fitting the shape of the pile body to reduce gaps;
- Fixing device: Used to firmly connect the tooling to the ground or pile foundation to prevent the tooling from shifting. Common forms include anchor bolt fixing (fixing the tooling base to the ground concrete), hoop tightening (clamping the circular tooling on the pile body through bolts) or counterweight ballasting (adding heavy objects to the base to prevent 倾倒 (toppling));
- Buffer components: Rubber pads, foam boards or springs are installed at the contact part between the tooling and the pile body. When the tooling is impacted by external forces, the impact force transmitted to the pile body is reduced through buffering, which is especially suitable for the contact part between the steel tooling and the concrete pile body, avoiding surface damage of the pile body caused by hard contact;
- Warning signs: Paint yellow-black warning paint or paste reflective strips on the surface of the tooling to remind construction personnel and machinery to avoid, reducing the probability of collision.
III. Core Uses: Multiple Protections to Guard the Integrity of Pile Foundations
The core function of pile foundation protection pile tooling is to provide targeted protection for the pile body during the transition period from the completion of pile foundation construction to the connection of the upper structure. The specific roles are reflected in:
- Anti-collision protection: Block accidental collisions of construction machinery (such as excavators, cranes, concrete tank trucks) during operation, avoiding cracks, corner dropping or steel bar exposure on the pile head;
- Anti-pollution isolation: Prevent construction wastes such as mud, concrete residues and oil stains from adhering to the surface of the pile body, reduce the workload of later cleaning, and avoid pollutants from penetrating into the pile body and affecting its strength;
- Load dispersion: When materials need to be stacked near the pile foundation, the tooling can transmit part of the load to the ground through its own structure, avoiding the pile body from bending or breaking caused by materials directly pressing on the pile body;
- Size marking: Some tooling will reserve elevation scales or center line marks to assist construction personnel in precise positioning in subsequent processes (such as pile head cutting, bearing platform pouring) to ensure construction accuracy.
From the maintenance stage after the pile foundation is formed to the preparation stage before the bearing platform construction, the pile protection tooling is always the "first line of defense" for the safety of the pile body.
IV. Types and Adaptable Scenarios
According to the pile foundation form and construction needs, pile foundation protection pile tooling can be divided into multiple types:
- Fixed pile protection tooling: Fixed to the ground by bolts, the height of the protective frame is usually 50-100cm, suitable for pile foundations exposed for a long time (such as bridge pier pile foundations), and can resist strong external impacts;
- Adjustable pile protection tooling: The frame diameter or side length can be adjusted through a telescopic structure (such as a steel frame connected by sleeves), adapting to pile foundations of different diameters (such as circular piles of 500-1200mm). It has strong flexibility and is suitable for projects with multi-specification pile foundations;
- Detachable pile protection tooling: Composed of multiple modules connected by bolts or buckles, it is convenient to install and disassemble, and easy to reuse. It is suitable for sites with frequent temporary protection needs (such as group pile protection in construction sites);
- Embedded pile protection tooling: Part of the protective structure (such as steel sleeves) is pre-embedded in the concrete near the pile head during pile foundation pouring, and the upper protective frame is installed later. It is suitable for special pile foundations with extremely high protection strength requirements (such as wind power equipment foundation piles).
V. Usage Points and Precautions
To ensure that the pile protection tooling plays its role effectively, the following points should be noted during use:
- Precise adaptation: Select or customize the tooling according to the diameter and shape of the pile foundation, ensuring a reasonable gap between the tooling and the pile body (usually controlled at 5-10cm), avoiding protection failure due to excessive gaps, and preventing excessive extrusion of the pile body due to too tight fit;
- Stable installation: The fixing device must be installed firmly, especially in soft sites or vibrating environments, it is necessary to increase counterweights or deepen the anchor bolt embedding depth to prevent the tooling from 倾倒 (toppling);
- Regular inspection: Regularly check the integrity of the tooling during construction. If frame deformation, loose fixing or wear of buffer components is found, repair or replace them in time;
- Timely removal: After the pile foundation is connected to the upper structure (such as the completion of bearing platform pouring), the pile protection tooling should be removed in time to avoid affecting subsequent construction, and recycled to reduce costs.
Summary
Although the pile foundation protection pile tooling is a temporary device in construction, it is directly related to the structural safety and engineering quality of the pile foundation. With targeted material selection to resist environmental erosion and flexible structural design to adapt to different pile foundation forms, it builds a "protective barrier" for pile foundations in complex construction environments. Reasonable selection and standardized use of pile protection tooling can effectively reduce the risk of pile foundation damage, ensure the bearing performance of pile foundations, and lay a solid foundation for subsequent structural construction. In today's era of focusing on engineering quality and safety, this "small device" is becoming an indispensable protection guarantee in pile foundation construction.
