Failure Modes of Rebar Mechanical Joints & On-Site Judgment Methods

01. Why Must You Understand Joint Failure Modes?

In rebar mechanical splicing, many people focus only on price and specifications but overlook the core question:

👉 How does the joint actually "fail"?

In reality, there is only one ultimate standard for judging engineering quality: Joint Strength ≥Parent Metal Strength

According to the Technical Specification for Mechanical Splicing of Rebars (JGJ 107-2016): The design principle requires the joint strength to be higher than that of the parent metal, meaning failure should occur in the parent metal.

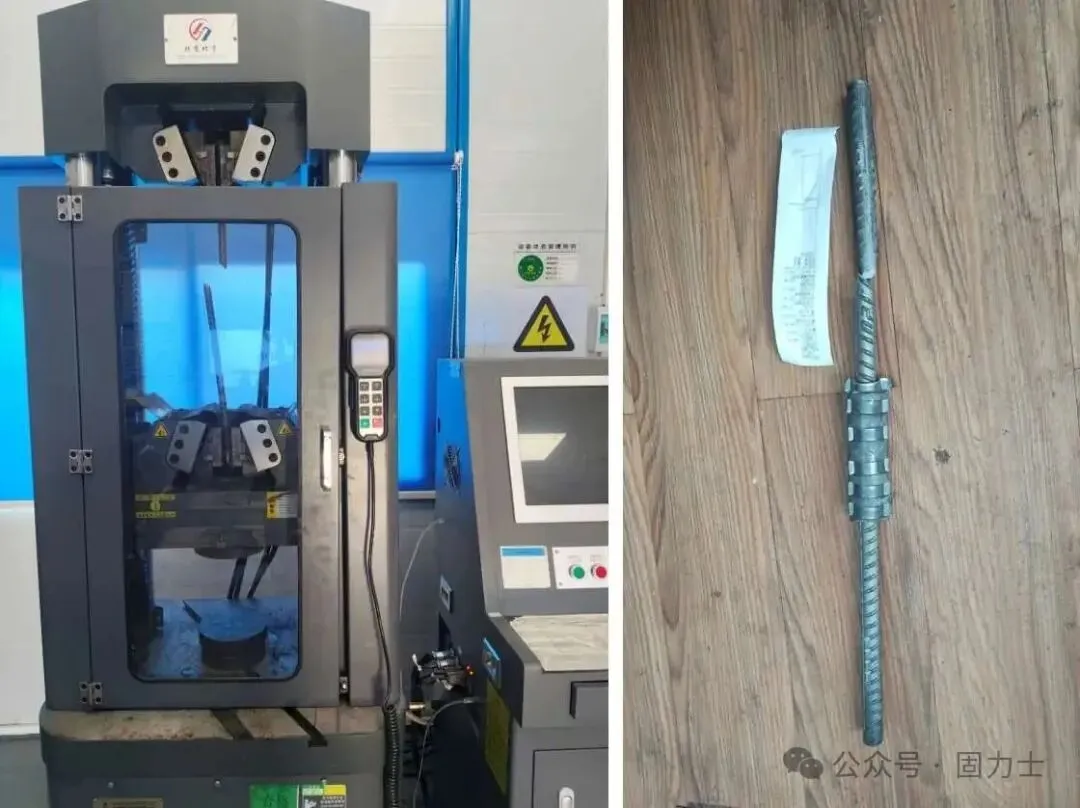

• ✔ Qualified Joint: Failure should preferentially occur as parent metal breakage.

• ❌ Quality Risk: If the failure occurs at the joint or via slipping, it indicates a quality defect.

02. The Three Core Failure Modes

1️⃣ Parent Metal Failure (The Ideal State)

• 👉 Appearance: * Fracture occurs far away from the coupler.

  • The rebar shows obvious necking.

  • The joint area remains completely intact.

• 👉 Indication:

  • ✔ The joint strength is higher than the rebar itself.

  • ✔ Fully complies with code specifications.

• 👉 Takeaway: The structure is safest when the joint remains "invisible" under ultimate load.

2️⃣ Joint Failure (Typical Quality Issue)

• 👉 Appearance:

  • Fracture occurs right at the coupler or the threaded end.

  • Visible damage at the splice location.

• 👉 Common Causes:

  • Substandard thread processing.

  • Insufficient material strength of the coupler.

  • Incomplete tightening or poor installation.

  • Misalignment (not coaxial).

• 👉 Engineering Judgment:

  • ❌ Deemed an unqualified joint.

  • ❌ Must be reworked or replaced.

3️⃣ Slip Failure (The Most Hidden & Dangerous)

• 👉 Appearance:

  • The rebar does not break.

  • It is pulled out of the coupler.

  • The slippage/displacement exceeds the allowable limit.

• 👉 Cause Analysis:

  • Insufficient thread length.

  • Tightening torque fails to meet the standard.

  • Poor thread precision.

• 👉 Risks:

  • ⚠ Insufficient load-bearing capacity.

  • ⚠ Extremely difficult to detect with the naked eye on-site.

03. 5 Specific Common Failures in the Field

Beyond the three main categories, the following specific issues are frequently encountered on-site:

• 1️⃣ Threaded End Breakage------- Severe weakening during the thread-cutting/rolling process.

• 2️⃣ Coupler Cracking ------- Substandard material or insufficient wall thickness.

• 3️⃣ Thread Shear Failure -------Stripping due to poor engagement between internal and external threads.

• 4️⃣ Joint Loosening -------Torque did not meet the standard, or failure occurred under vibration environments.

• 5️⃣ Eccentric Loading Fracture------- Misalignment during installation leading to stress concentration.

04. How to Quickly Judge Joint Quality On-Site?

Here is a simple and practical field formula:

"Check the break point, check the necking, check the slip."

• ✔ Breaks at the rebar -------Qualified

• ❌ Breaks at the joint------- High Risk

• ⚠ Pulled out------- Critical Danger

05. Why Do Premium Joints Always Aim for "Parent Metal Failure"?

The fundamental reason is simple:

👉 To make the joint "disappear" within the structure.

This means the joint:

• Matches or exceeds the strength of the rebar.

• Shares identical mechanical performance.

• Does not become a weak point in the structural chain.

06. How to Prevent Joint Failure?

To consistently achieve "parent metal failure" in actual projects, four critical steps must be strictly controlled:

• ✔ Precision Rolling Process -------Ensures the threaded end's strength is not compromised.

• ✔ High-Strength Alloy Steel Couplers -------issues completely.

• ✔ 100% Factory Inspection Mechanism------- Guarantees consistency and stability.

📊 Summary (Perfect for Sharing)

Rebar splicing looks simple, but it is a critical node for structural safety.

A truly premium mechanical joint has only one standard:

👉 Break the rebar, don't break the joint.
