In reinforced concrete construction, the integrity and continuity of steel reinforcement are critical to structural performance. Traditionally, lap splices have been used to connect rebars by overlapping and relying on bond strength with concrete. However, as construction complexity, bar diameters, and seismic demands have increased, mechanical splices (couplers) have emerged as a superior solution.

Mechanical couplers eliminate the need for long lap lengths and allow direct end-to-end bar connections, ensuring efficient load transfer independent of concrete bond. Their use has grown rapidly in high-rise buildings, infrastructure projects, bridges, tunnels, and seismic-resistant structures, where rebar congestion, space limitation, or structural performance requirements make lapping impractical.

Today, international standards such as ACI 318-19, BS 8597:2015, and IS 16172:2023 define strict performance classifications for couplers (Type 1 and Type 2), requiring up to 125% of bar yield strength to ensure safety and ductility under extreme loading.

2. Why Mechanical Couplers Are Changing Modern Construction

Mechanical splices offer clear advantages over lap splices:

1. Superior Structural Integrity:
   Mechanical couplers ensure continuous load paths through reinforcement, providing improved strength and toughness even under seismic loading.

2. No Dependence on Concrete Bond:
   The load transfer occurs directly between rebars through the coupler body—making it more reliable in poor concrete or congested zones.

3. Reduced Material and Labor Costs:
   Eliminating lap lengths reduces rebar consumption by up to 30%, especially with large-diameter bars.

4. Code Compliance and Safety:
   As per ACI 318-19, mechanical splices must deliver 125% of yield strength, offering enhanced safety margins in plastic hinge zones.

5. Construction Efficiency:
   Installation is faster, cleaner, and more controlled—especially critical in precast, high-rise, or confined environments.

3.Types of Couplers

Several types of mechanical couplers are available-on the market (Table 1). Couplers may be categorized as tension couplers or compression couplers. Unless specified otherwise, tension couplers should always be used.

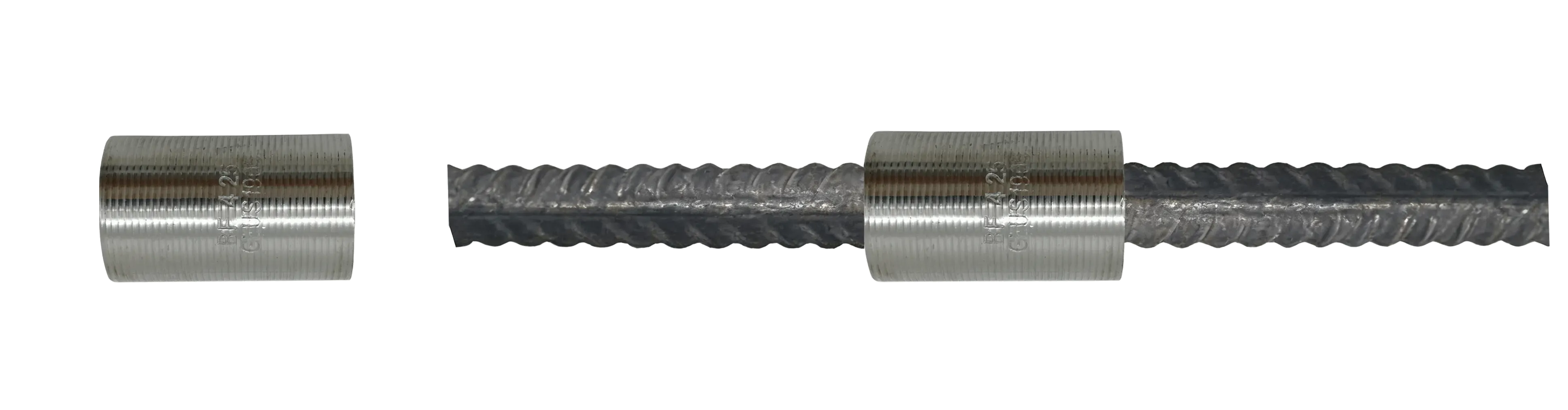

1. Threaded Couplers

Threaded couplers are the most widely used type of mechanical splice. In this system, the ends of the rebars are threaded using a rebar threading machine, and the coupler—an internally threaded steel sleeve—is screwed onto the bar ends to form a continuous mechanical connection.

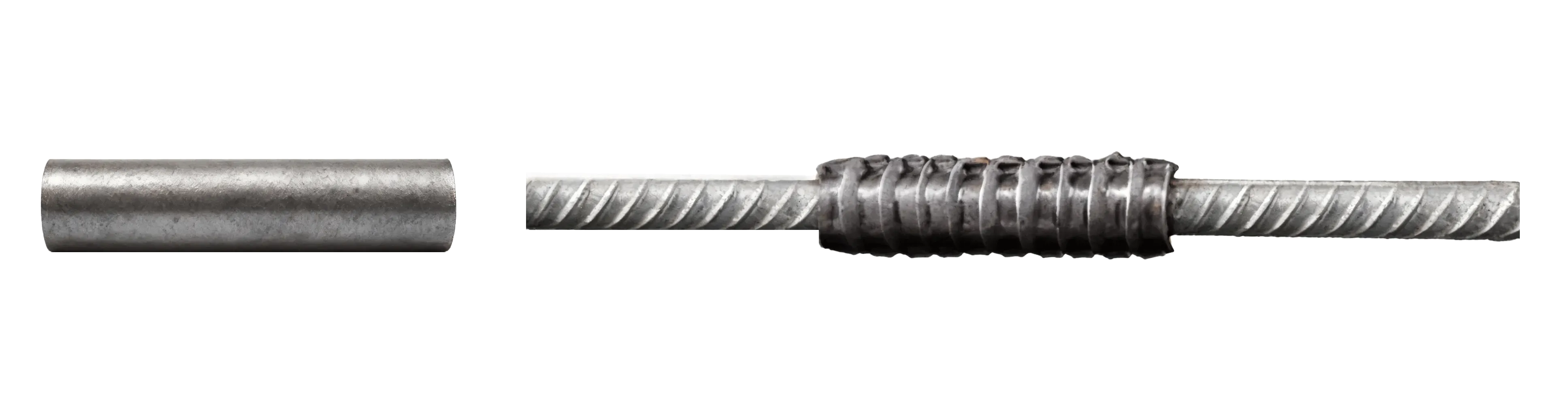

2. Cold Extrusion Couplers

Cold extrusion couplers use hydraulic pressure to deform the sleeve around the rebar ends, creating a strong mechanical interlock without threading or welding.

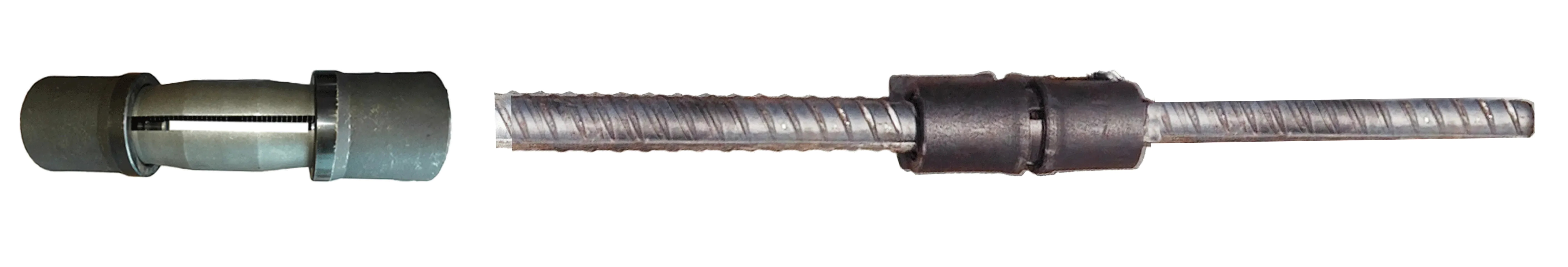

3. Axial Cold Extrusion Couplers

The axial cold extrusion coupler represents an innovation over the conventional radial type. Instead of compressing from multiple directions, it applies high-pressure extrusion along the axial direction of the bar using a dedicated hydraulic press.

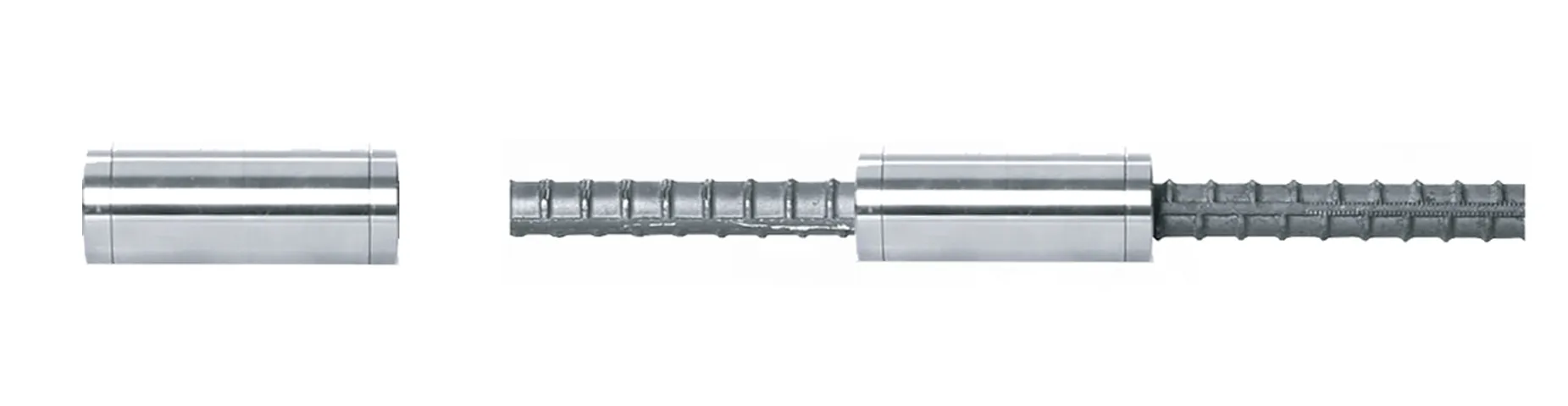

4. One-Touch (Quick Connection) Couplers

The One-Touch Coupler, also known as a quick or push-in coupler, is a new-generation mechanical splice designed for rapid installation without the need for threading or pressing equipment.

Summary

Each type of mechanical rebar coupler offers a unique balance of performance, convenience, and cost.

As construction projects demand greater efficiency and safety, mechanical couplers—particularly cold extrusion and quick connection types—are becoming indispensable solutions for achieving robust, standardized, and time-saving rebar connections in the modern construction industry.
